Single Shaft Livestock Animal Feed Mixer Manufacture
Quick Look :
Paddle : -12/Q235
Shell curved plate: -6/Q235
Shell wallboard: -12/Q235
Bearing:Wafangdian
Open door cylinder (with magnetic switch): Delixi
SHLJ mixer is wide applied to additive, premix, feedstuff, medicine, food chemical industries.
The Technical parameter:
| Type | SLHSJ0.5 | SLHSJ 1 | SLHSJ 2 | SLHSJ 4 | SLHSJ 6 |
| Mixing Capacity(kg/batch) | 250 | 500 | 1000 | 2000 | 3000 |
| Power(kw) | 5.5 | 11 | 18.5/22 | 30/37 | 37/45 |
| Capacity(m³) | 0.5 | 1 | 2 | 4 | 6 |
| Mixing Time(s) | 60-180 | 60-180 | 60-180 | 60-180 | 60-180 |
| Mixed Uniformity | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Advantage :

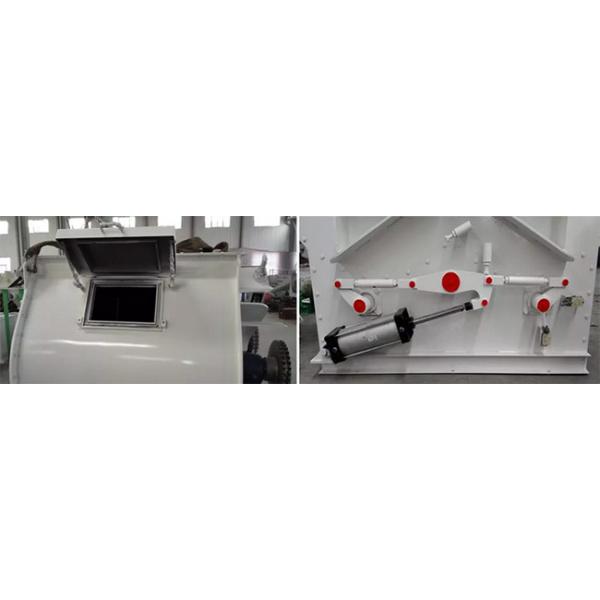

1.Discharging door adopted full open structure and big angle (＞90°),ensure material complete discharge and decrease vestigital.
2.The discharging door molding rubber seal to ensure no leakage material.
3.The gap between blade and casing ≤3mm and mixing uniformity CV≤5%(can even reach 2.3%), high mixing uniformity.
4.Mix without dead angle, short cycle, mix time is about 30-120 seconds each batch, discharging time is about 3 minutes.
5.Shaft end adopted packing seal, without leakage material, big access door structure, easy for clean and change paddle.
6.Equipped with oil liquid adding system, can add variety of liquid.
7.Liquid Sprayer adopted atomization, according to the need can install pneumatic assist sprayer and easy control.
8.According to the need can choose stainless steel or semi-stainless steel or carbon steel material to manufacture.
9.Double reduction gear belt drive, smooth transmission, save 20% power than chain drive.
FAQ:
1. Will you help with installation and stuff training ?
Of course, we can send our skilled engineers to provide you entire service from the installation, commissioning and training.
2. How do you control the quality?
We insist "Quality is life” and always pay great attention to quality control from the beginning to the end. You can also be reassured by our one-year warranty and CE&BV&SGS Certificates.
3. Can you provide turn-key project?
Yes, we have enough experience in installing turn-key projects overseas.
4. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us.
5. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
